BGA · Blue-Green Algae Sensor

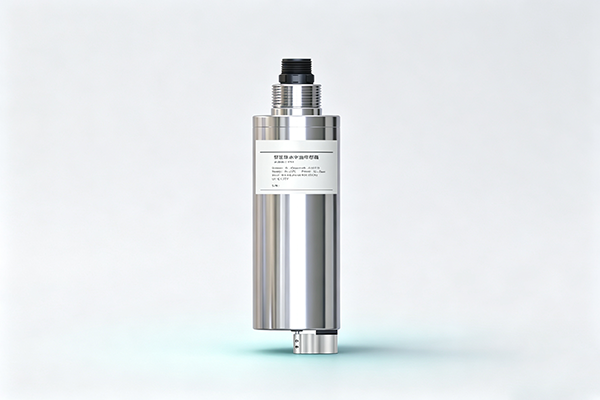

M200 Blue-Green Algae Digital Sensor

Phycocyanin (PC) fluorescence measures blue-green algae concentration with high sensitivity, low drift, and automatic temperature compensation. IP68 protection, flexible installation, RS485 output, and linkage with chlorophyll-a and turbidity support early warning in source water.

View all models Get selection advice
Blue-Green Algae Sensor
100 cells/mL
Max Range
PC Fluorescence
Phycocyanin
Low Drift
long-term online monitoring
IP68
Full protection · RS485
Features

Phycocyanin fluorescence for early blue-green algae bloom warning

Characteristic phycocyanin fluorescence identifies cyanobacteria and complements chlorophyll-a for better algal-population discrimination. An optional self-cleaning brush limits fouling for stable, unattended source-water monitoring.

Advanced Circuitry

High StabilityFluorescence Circuit,PhycocyaninFluorescence SignalHigh-precision Acquisition.

Easy Installation

Submersion and flow-through options with a standard cable for buoy or shore deployment.

Industrial-grade Protection

IP68 protection with a weather-resistant housing and optional self-cleaning brush to limit biofouling.

Fast Response

Fast fluorescence response, low drift, and stable long-term online operation.

Model Selection

BGA Sensor Model Overview

The series supports multiple installation methods and water types. Filter by installation method, then add a model to your selection list or contact our engineers for verification.

M200-BGA-01
RS485 Digital
Submersion · General Purpose
Range0-1,000,000 cells/mL
Measurement PrinciplePhycocyaninFluorescence
Temp. Range0–45°C
Housing MaterialPOM+Stainless Steel
Water SourceLakes & ReservoirsRiver Monitoring
M200-BGA-02
RS485 Digital
Submersion - With Self-cleaning
Range0-1,000,000 cells/mL
Measurement PrinciplePhycocyaninFluorescence
Temp. Range0–45°C
Housing MaterialPOM+Stainless Steel
Water SourceBuoylong-term online monitoring
M200-BGA-03
RS485 Digital
Flow-through - Online Type
Range0-500,000 cells/mL
Measurement PrinciplePhycocyaninFluorescence
Temp. Range0–45°C
Housing MaterialABS
Water plant influentPump StationProcess monitoring
M200-BGA-04
4-20mA Analog
Submersion · Analog Output
Range0-1,000,000 cells/mL
Measurement PrinciplePhycocyaninFluorescence
Temp. Range0–45°C
Housing MaterialPOM+Stainless Steel
Landscape WaterRiverWetland
M200-BGA-05
RS485 Digital
Submersion · Aquaculture
Range0-200,000 cells/mL
Measurement PrinciplePhycocyaninFluorescence
Temp. Range0–45°C
Housing MaterialPOM+Stainless Steel
AquaculturePondBlue-green algae early warning
M200-BGA-06
RS485 Digital
Flow-through - Low Range
Range0-200,000 cells/mL
Measurement PrinciplePhycocyaninFluorescence
Temp. Range0–45°C
Housing MaterialABS
ReservoirWater SourceProcess
Specifications

Complete Specifications

General specifications for the series. Range, housing, and output vary by model and are confirmed during selection.

Measured Parameter
Blue-Green Algae / Phycocyanin(BGA / PC)
Measurement Principle
PhycocyaninFluorescence
Measuring Range
0-1,000,000 cells/mL(stepped,convertible to μg/L PC)
Temp. Compensation
Automatic
Temp. Measurement range
0.0–45.0°C
Pressure Range
0–6 bar
Housing Material
POM+Stainless Steel / ABS(By Model)
Process Connection
G3/4 · NPT3/4
Cable Length
Standard 5m (Customizable)
Protection Rating
IP68
Power Supply
DC9–30V(recommended DC12V)
Cleaning Method
Self-cleaning (Optional)
Electrical Connection
RS485 (MODBUS-RTU) or 4-20mA Analog
Installation
Submersion / Flow-through
Warranty
1 year
Applications

Suitable Water Types

Blue-green algae are a direct indicator of bloom and algal-toxin risk in source water. Combine phycocyanin fluorescence with chlorophyll-a to distinguish algal populations and improve early warning. Select the range and installation for your water type below.

Water source and water supply

5
Water SourceReservoirLakeWater plant influentDrinking Water Source

Surface water monitoring

4
River MonitoringWetlandLandscape WaterSurface Water

Aquaculture

3
Pond aquacultureBlue-green algae early warningCirculating-water aquaculture

Research and environment

3
Environmental MonitoringResearch StationBuoy Station
Get a recommendation

Tell us your water type and range, and we will recommend the right blue-green algae model

Send us the algae range, water type, and installation conditions. Our engineers will recommend the range, housing, cleaning option, and installation, then configure the probe for plug-and-play connection to an 8-channel monitor.
