CODOrganic
CODcr
Chemical Oxygen Demand
Comprehensive organic pollution indicator · Dichromate method · Built-in online analyzer
Micro Automatic Water Quality Monitoring Station · Micro Water Station · MicroCONTROL 1510
Micro Water Quality
Micro Water Quality
Automatic Monitoring Station

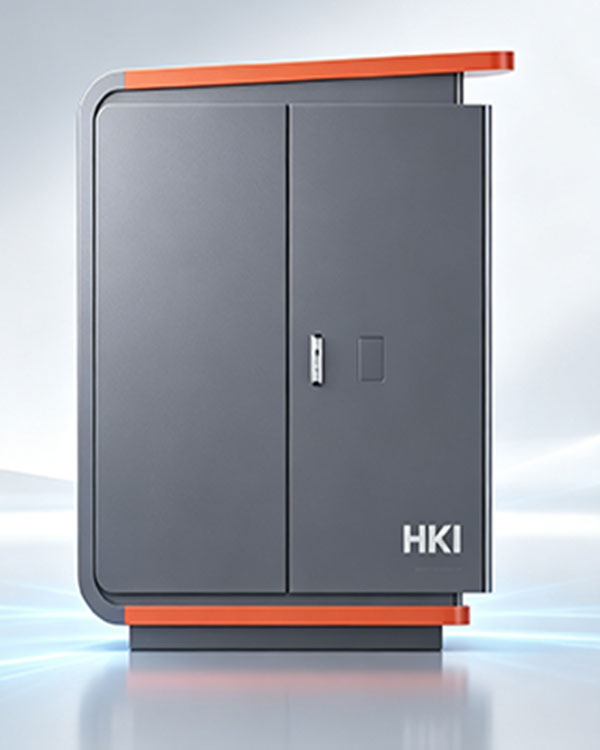

MicroCONTROL 1510 Micro Automatic Water Quality Monitoring Station centers on online automatic monitoring instruments, integrating modern sensors, automatic measurement, automatic control, and computer application technology, with dedicated analysis software and communication network, forming a comprehensive small-scale online automatic monitoring system. Real-time and rapid monitoring of section water quality status and change trends, timely detection of environmental pollution incidents, providing scientific basis for watershed pollution prevention decisions, supervision, and environmental management.
13+Detection Factors
2㎡Footprint
IP55Six-protection Cabinet
3000WMax Power
RS485Standard Interface
Key Highlights
Integrated Cabinet, Instant Station on Site
Highly integrated, small footprint, movable — built with maintenance-free sampling/distribution and intelligent temperature control, six-protection cabinet, expandable parameters, capable of rapid deployment and long-term stable operation from river sections to grid monitoring points.
Integrated Design · Rapid Deployment
Highly integrated, low cost, footprint within 2㎡, can be quickly deployed as a station, saving time and effort in installation.
Maintenance-free Sampling & Distribution
Scientific pre-treatment system with complete built-in maintenance-free sampling and water distribution system, meeting monitoring needs of different water bodies.
Intelligent Temp Control · Insulation
Cabinet equipped with intelligent temperature control system, combined with insulation design, meeting long-term outdoor use requirements.
Modular · Expandable Parameters
Standardized interfaces, modular design, simple and flexible installation and maintenance, monitoring parameters can be expanded as needed.
IP55 · Six-protection Cabinet
Protection rating IP55+, with rain, dust, lightning, theft, freeze, and sun protection — strong environmental adaptability.
Low Cost · Flexible Deployment
Low construction and operation costs, suitable for mobile deployment, ideal for both random deployment and large-area network monitoring.
Detection Factors
One Station Covers 13+ Water Quality Factors
From organic comprehensive to nutrients, from conventional five parameters to algae and section flow — filter by category, locate quickly; specific detection factors can be added, removed, or expanded based on on-site needs.
CODMnOrganic
Permanganate Index
Permanganate Index
Common organic indicator for surface water · reflects oxygen consumption
NH3-NNutrients
Ammonia Nitrogen
Ammonia Nitrogen
Key indicator for malodorous water and eutrophication
TPNutrients
Total Phosphorus
Total Phosphorus
Core nutrient for eutrophication control
TNNutrients
Total Nitrogen
Total Nitrogen
Total nitrogen nutrient · Built-in online analyzer
pHConventional
pH Value
pH Value
Acidity/alkalinity · One of five conventional parameters
ECConventional
Conductivity
Conductivity
Related indicator for total dissolved solids
DOConventional
Dissolved Oxygen
Dissolved Oxygen
Reflects water self-purification and ecological status
TConventional
Water Temperature
Temperature
Basic hydrological parameter · temperature compensation baseline
NTUConventional
Turbidity
Turbidity
Suspended particulate matter · Optical method measurement
ChlBiological
Chlorophyll-a
Chlorophyll-a
Algal biomass · Fluorescence method
BGABiological
Blue-green Algae
Blue-green Algae
Algae bloom warning · Fluorescence method
QHydrological
Section Flow
Section Flow
Flux calculation · Section water volume monitoring
CODcr mg/L18.5
Ammonia Nitrogen mg/L0.42
Total Phosphorus mg/L0.12
Dissolved Oxygen mg/L7.8
pH7.65
Turbidity NTU6.5
Live Monitoring
Section Data on Screen in Real-time,
Section Data on Screen in Real-time,
Instant Anomaly Warning
Ultra-clear color LCD screen for local instant reading of real-time values and change trends of each factor; the same data is aggregated via RS485, supporting 212 protocol / MQTT / MODBUS upload to the upper platform. Equipped with quality control functions, data identification, and remote control, local and cloud synchronized.
- LocalUltra-clear Color LCD · Real-time Section Readings
- Upload212 Protocol / MQTT / MODBUS · Direct Platform Connection
- QCQuality Control · Data Identification · Validity Judgment
- RemoteRemote Control · Anomaly Reset · Auto Recovery
Specifications
Complete Unit · Technical Specifications
The table below shows general specifications of the MicroCONTROL 1510 Micro Automatic Water Quality Monitoring Station, which can be directly incorporated into comparison tables; specific configuration is subject to the contract technical agreement.
Detection FactorsCODcr · Ammonia Nitrogen · Total Phosphorus · Total Nitrogen · Permanganate Index · pH · Conductivity · Dissolved Oxygen · Temperature · Turbidity · Chlorophyll · Blue-green Algae · Section Flow, etc.
Data InterfaceRS485
Data Output212 Protocol · MQTT · MODBUS
Display & OperationUltra-clear Color LCD Display
Maintenance CycleNormally once per month
Power SupplyAC220V±10% · 50±10% Hz
PowerMax Power 3000 W
Environmental Requirements-10 ~ 60 ℃ · Humidity ≤ 85% (non-condensing)
Protection RatingIP55+ · Six-protection Cabinet
Dimensions1467 × 1167 × 1945 mm (L×W×H)
FootprintWithin 2 ㎡ · Integrated Cabinet
Other FunctionsAnomaly reset · Auto-clearing of residual reactants on power-up · Auto-recovery of working state · Quality control function · Data identification · Remote control
Built-in Analyzers
Built-in Online Analyzers · Specifications
The monitoring station has two built-in online automatic analyzers for COD and total nitrogen, meeting national standard technical requirements. Switch to view key indicators such as range, error, and drift for each; parameters can be adjusted according to on-site needs.
CODcr Water Quality Online AnalyzerDichromate MethodHJ 377-2019
15–1000
Range mg/L · Adjustable
±5~10%
Indication Error (Full Scale)
20%*±10%
50%*±8%
80%*±5%
≤15
Quantitation Limit mg/L (±30%)
≤5.0%
Repeatability
±5
24h Low-concentration Drift mg/L
≤5%
24h High-concentration Drift
±5
Memory Effect mg/L
80→20%*±5
20→80%*±5
±5%
Voltage Influence Test
±10%
Chloride Ion Influence Test
±5%
Ambient Temperature Influence Test
≤5~10%
Actual Water Sample Comparison
<50mg/L≤5.0mg/L
≥50mg/L≤10%
≥168h
Min Maintenance Cycle / Time
≥90%
Valid Data Rate
≥90%
Consistency
Total Nitrogen Water Quality Online AnalyzerAlkaline Potassium Persulfate Oxidation - UV SpectrophotometryHJ/T 102-2003
0–100
Range mg/L · Adjustable
Ranges0~5/10/50/100
≤±5%
Zero Drift
≤±10%
Span Drift
≤±10%
Linearity
≤±10%
Repeatability Error
≥720h
MTBF / Time
≤10%
Actual Water Sample Comparison Test
≤±10%
Voltage Stability
>5MΩ
Insulation Resistance
Applications
Instant Station on Site, Monitor Anywhere
From river sections to lake/reservoir water sources, from industrial park outlets to rural sewage — the integrated cabinet can be placed on the floor to form an independent station, low cost, movable, suitable for random deployment and large-area network monitoring.
River Section MonitoringSection Monitoring
Lake & Reservoir Water QualityLakes & Reservoirs
Drinking Water SourcesWater Source
Basin Assessment SectionsBasin Assessment
Industrial Park OutletsIndustrial Outlet
Rural Sewage StationsRural Sewage
Mobile Emergency MonitoringMobile Emergency
Large-area Grid DeploymentGrid Network
