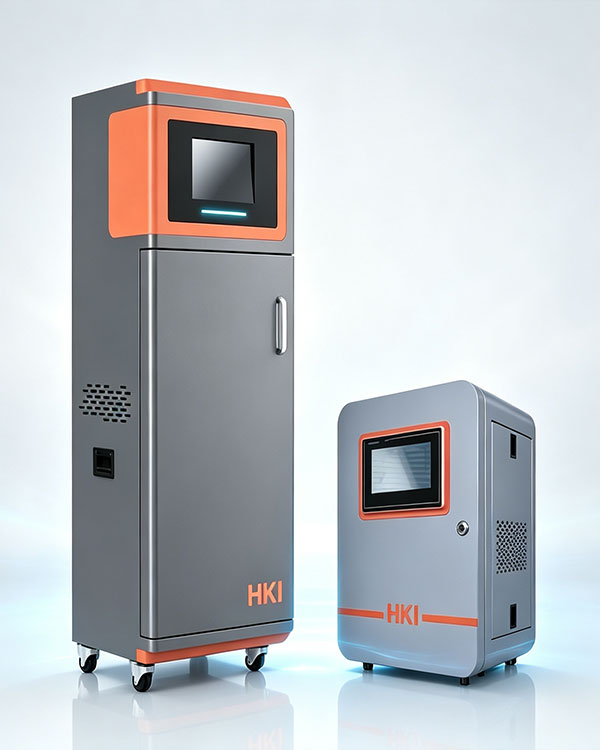

Heavy Metal Online Water Quality Analyzer · M200-Xcm5 Series

Ten Types of Heavy Metals,
One Online Precise Monitor

M200-Xcm5 Series Heavy Metal Online Water Quality Analyzer adopts photoelectric metering, high-temperature high-pressure digestion, and integrated digestion-colorimetry technology. It can online monitor heavy metal factors including total manganese, total iron, total lead, total zinc, total arsenic, total nickel, total chromium, total cadmium, total copper, and hexavalent chromium. Accurate measurement, low detection limit, high reliability, compliant with national environmental standards, and reagents can be self-configured according to national standards.

10Heavy Metal Factors

25minMin. Cycle

±10%Accuracy

3yr+Historical Data

RemoteControl & O&M

Core Technologies

PhotoPhotoelectric Metering DigestHigh-Temp High-Pressure Digestion ColorIntegrated Digestion-Colorimetry CalibLight Source Self-Calibration RemoteRemote Control O&M

Key Highlights

Integrated Digestion-Colorimetry, Accurate and Worry-Free

Three things matter for heavy metal online monitoring — measurement accuracy, maintenance hassle, and remote management capability. Photoelectric metering + light source self-calibration ensure precision; waste-wash separation + self-diagnosis reduce costs; integrated multi-indicator software lets you switch between different pollutants anytime.

Turbidity & Color Anti-Interference

Turbidity and color anti-interference design, stable readings even for complex water samples.

Wash-Waste Separation · Reagent Saving

Low reagent consumption, less waste liquid — wash-waste separation + reagent saving, low operating cost.

Self-Diagnosis · Auto Clean & Calibrate

Intelligent fault self-diagnosis + automatic cleaning, automatic calibration, low failure rate, easy maintenance.

Light Source Self-Calibration

Unique light source self-calibration avoids light decay effects and ensures high measurement accuracy.

Power-Fail Protection · 3+ Year History

Power-fail protection design, reliable data storage, saves 3+ years of historical data.

Remote Control O&M

Equipped with remote control function, central control can operate the instrument for remote maintenance.

Specifications

M200-Xcm5 · Technical Specifications

Method basis depends on the measured factor; range grading, accuracy, and cycle are as follows. Two models available (3rd gen / 4th gen), can be directly incorporated into comparison sheets.

Method BasisDepends on measurement factor

Measurement range0–20 mg/L (graded 0.1–5 / 0.5–10 / 1–20)

Accuracy≤ ±10% or ≤ ±0.2 mg/L

Repeatability≤ ±5%

Measurement CycleMin. 25 minutes

Sampling CycleHourly / equal interval 5–99min / external trigger

Calibration Cycle≤ 24 hours

Maintenance Cycle~once per month · ~30min each time

Digestion MethodHigh-temp high-pressure digestion · integrated colorimetry

Output2 ch RS-232 · 1 ch 4~20mA

EnvironmentIndoor +5~28℃ · Humidity ≤90% (non-condensing)

Power SupplyAC220V±10% · 50Hz±10% · 5A

Dimensions3rd gen 512×427×1480 · 4th gen 330×285×510 mm

OtherAbnormal alarm · data preserved on power failure

Heavy Metal Online Analyzer ONLINE

Total Pb mg/L0.008

Total Cd mg/L0.003

Total Cr mg/L0.041

Hexavalent Cr mg/L0.012

Total As mg/L0.006

Total Cu mg/L0.15

M200-Xcm5 · RS-232 / Remote Control

Live Analysis

Integrated Digestion-Colorimetry,
Online Reading & Reporting

High-temperature high-pressure digestion and colorimetry integration; automatic measurement on the hour or at equal intervals, over-limit alarm. Integrated multi-indicator analysis software can switch to measure different pollutants anytime. Data is reported via RS-232, supporting remote central control and maintenance.

DigestionHigh-temp high-pressure digestion · integrated colorimetry
CalibrationAuto clean & calibrate · light source self-calibration
ReliablePower-fail protection · 3+ years data preserved
O&MRemote control · multi-indicator software switching

Monitored Factors

One Instrument, Ten Types of Heavy Metals

Switch software on the same analyzer to measure different heavy metal factors. Range 0–20 mg/L with grading; reagents can be self-configured per national standards. Filter by category to quickly locate the desired factor.

MnPhotoelectric Colorimetry
