Pole-type Multi-parameter Water Quality Monitor · MicroCONTROL-600 Series · Pole Station

3m Pole Wall-mount,
One Pole Makes a Station

MicroCONTROL-600 Series Pole-type Multi-parameter Water Quality Monitor — 3-meter pole wall-mounted design, small footprint, quick installation. 8 channels for optional pH, dissolved oxygen, turbidity, COD, ammonia nitrogen and other sensors; full-color display, keyless touch operation, standard Modbus + RS485 + 4G wireless transmission, 50W solar panel + 32AH battery pack power supply, suitable for long-term outdoor deployment.

IP54Outdoor Protection
3mPole Wall-mount
4GWireless Transmission
50WSolar Power
Full ColorTouch Display

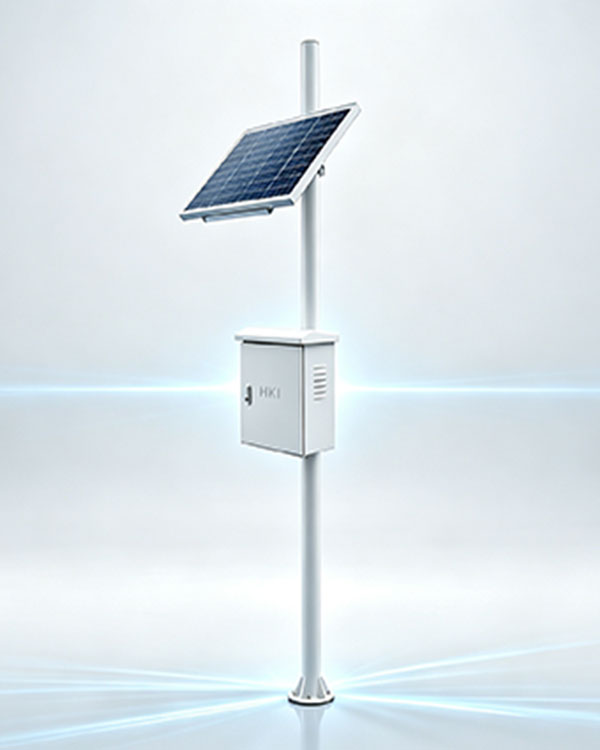

Pole-type Multi-parameter Water Quality Monitor
Standard Measured Parameters
pHpH Value · 0–14.00 ECConductivity · 0–2000 DODissolved Oxygen · 0–20 NTUTurbidity · 0–2000 T°Temperature · 0–40℃
Key Highlights

One Pole Up, Full-color Outdoor Monitoring

Three things to check when selecting — how fast to install, whether power is sufficient, and whether data is readable. 3m pole wall-mount with small footprint, 50W solar self-sufficiency, full-color display with keyless touch, Modbus + RS485 + 4G wireless — ideal for long-term outdoor deployment.

3m Pole Wall-mounted

3-meter pole wall-mounted design, small footprint, quick and easy installation and removal.

50W Solar Power

Equipped with 50W solar panel + 32AH battery pack, outdoor self-sufficient, no external mains power needed.

Full-color Widescreen Display

Adopts full-screen color display with soft LCD backlight, intuitive data, clear display.

Keyless Touch Operation

Object-oriented menu + keyless touch operation, simple and convenient operation.

RS485 + 4G Wireless

Standard Modbus communication protocol, RS485 + 4G wireless transmission, high communication compatibility.

Single / Dual / Multi-parameter Config

Can be customized as single, dual, or multi-parameter controller, flexible and cost-effective.

Specifications

MicroCONTROL-600 · Specifications

General specifications of the pole-type multi-parameter water quality monitor main unit are listed below. Measured parameters and ranges can be selected and adjusted according to on-site requirements, and can be directly incorporated into comparison tables.

Display7-inch Resistive Touchscreen
Display Resolution800 × 480
Analog Input8-channel Analog Input
Digital CommunicationRS485 · Modbus (partial compatibility)
Signal TransmissionRS485 + 4G Wireless
Data Storage≥ 30,000 Records
Operating Temperature0 ~ 50 ℃
Operating Humidity0 ~ 95 %RH
Storage Temperature-20 ~ 70 ℃
Protection RatingIP54
Power System50W Solar · 32AH (AC220V/DC12V)
Installation3m Pole Wall-mount
Smart Multi-parameter Water Quality Analyzer Online
pH7.35
Dissolved Oxygen mg/L8.22
Turbidity NTU4.1
Temperature ℃23.8
Conductivity μS/cm486
Residual Chlorine mg/L0.42
MicroCONTROL-600 · RS485 / 4G
Live Monitoring

Full-color Widescreen,
All Data on One Screen

Full-screen color display + keyless touch operation, real-time values of all channels intuitively presented on one screen with automatic over-limit alarm; the same data is transmitted back to the upper platform via standard Modbus, RS485 + 4G wireless. Pole deployment, no wiring required outdoors.

  • DisplayFull-screen Color · Keyless Touch Operation
  • CommunicationRS485 + 4G Wireless Back to Platform
  • Power50W Solar · 32AH Battery Pack
  • ProtectionIP54 · 3m Pole Wall-mount
Compatible Sensors

Select as Needed, Connect Every Probe You Want

12 sensors with unified RS-485 digital output, automatically recognized when connected to the main unit, no re-calibration needed. Corresponding sensors can be selected and integrated according to actual needs; filter by measurement principle to quickly locate the required parameters and ranges.

pHCombined Electrode

pH Value

pH Value
Range0.00–14.00 pH
Resolution0.01 pH
Accuracy±0.2 pH
IP68 · Immersion/Flow · 304L·POM · Φ30mm
ORPElectrode · Ion Adsorption

Redox Potential

Redox Potential
Range±2000 mV
Resolution0.1 mV
Accuracy±0.2 mV
IP68 · Immersion/Flow · 304L·POM · Φ30mm
DOUV Fluorescence

Dissolved Oxygen

Dissolved Oxygen
Range0–20 mg/L
Resolution0.01 mg/L
Accuracy±2% FS
IP68 · Immersion/Flow · Φ30mm · Maintenance-free Fluorescence
ECDiaphragm Polarography

Conductivity

Conductivity
Range0–2000 μS/cm
Resolution0.1 μS/cm
Accuracy±2% FS
IP68 · Immersion/Flow · 304L·POM · Φ30mm
ClMembrane Method

Residual Chlorine

Residual Chlorine
Range0–20 mg/L
Resolution0.01 mg/L
Accuracy±2%
IP68 · Immersion/Flow · Φ30mm · Drinking Water Applicable
NTUScattered Light

Turbidity

Turbidity
Range0–4000 NTU Ranges
Resolution0.001 NTU
Accuracy±3% FS
IP68 · Immersion/Flow · Φ45/Φ80mm · <0.2MPa
CODUV254 Dual-wavelength Absorption

COD

COD
Range0–500 mg/L
Resolution0.01 mg/L
Accuracy±5%
IP68 · 316L · Φ45mm · Reagent-free
NH₄Membrane-covered Ion Selective

Ammonia Nitrogen

Ammonia Nitrogen
Range0–100 mg/L Ranges
Resolution0.01 mg/L
Accuracy±5% FS
IP68 · PC · Φ30mm · <0.3MPa
SSInfrared Light Scattering

Suspended Solids

Suspended Solids
Range0–1500 mg/L
Resolution0.1 mg/L
Accuracy±5%
IP68 · 316L · Φ45mm · Measurable <50000mg/L
ChlFluorescence

Chlorophyll-a

Chlorophyll-a
Range0–500 μg/L
Resolution0.01 μg/L
Accuracy±5% FS
IP68 · 316L · Φ45mm · 0–100 RFU Optional
BGAFluorescence

Blue-green Algae

Blue-green Algae
Range0–300,000 cells/mL
Resolution1 cells/mL
Accuracy±5%
IP68 · 316L · Φ45mm · Algae Bloom Warning
OilUV Fluorescence

Oil-in-Water

Oil-in-Water
Range0–50 ppm
Resolution0.001 ppm
Accuracy±3% FS
IP68 · 316L · Φ45mm · 0–0.50 FLU Optional
Options & Add-ons

Optional Extensions, Fully Equipped for the Site

From solar power, wireless transmission to sampling cleaning and calibration alarms — freely select according to on-site conditions, fully equipped in one go, ready out of the box.

Power

Solar Power Kit

Solar Kit

50W solar panel + 32AH battery, operates without mains power.

Communication

4G Cloud Gateway · DTU

4G Gateway

RS-485 to 4G, data directly transmitted to cloud platform.

Sampling

Sampling Pre-treatment

Sampling Unit

Self-priming pump + filtration, suitable for turbid water and sewage.

Maintenance

Auto Cleaning Unit

Auto-Cleaning

Air / brush self-cleaning, extends maintenance-free intervals.

Calibration

Standard Solution Calibration Kit

Calibration Kit

Multi-point calibration standard solution, quick on-site calibration.

Alarm

Audible & Visual Alarm

Alarm Beacon

Over-limit sound and light alarm, relay / switch output.

Protection

Outdoor Sun Shield

Sun Shield

Outdoor sun and rain protection, works with IP54 for long-term use.

Installation

Pole Mount Clamp

Pole Mount

3m pole clamp, quick pole mounting and fixation.

Applications

One Pole Up, Instant Monitoring Station On-site

From river sections to water sources, from park discharge outlets to rural sewage stations — pole deployment forms an independent station, the same monitor adapts to different water bodies and operating conditions.

Rivers & LakesRivers & Lakes
Drinking Water · WaterworksDrinking Water
Secondary Supply · PipelineSecondary Supply
Wastewater Treatment ProcessWastewater Process
Industrial · Manufacturing DischargeIndustrial Discharge
AquacultureAquaculture
Malodorous Black WaterMalodorous Water
Drainage NetworkDrainage Network
Drinking Water SourcesWater Source
Get In Touch

Deploy a Pole-type Water Quality
Monitor for Your Site

Tell us the parameters to monitor, water body type, and installation environment. We will provide pole selection and sensor configuration list — measured parameters and ranges can be selected and adjusted according to actual needs.
