Automatic water sampler · MicroCONTROL 1610

Embedded intelligent sampling,
Retentionmore representative

The MicroCONTROL 1610 automatic water sampler uses embedded control and a holding vessel that supplies a continuous mixed sample. Linked to an online monitor it can retain exceedance samples, sync samples, and deliver mixed sample. Linked to a flow meter it can pace sampling to velocity and track flow so the sample represents the stream.

1–25Split-bottle retention
≥60mHorizontal sampling
4±2℃Sample storage
6Sample trigger
RS232MODBUS RTU

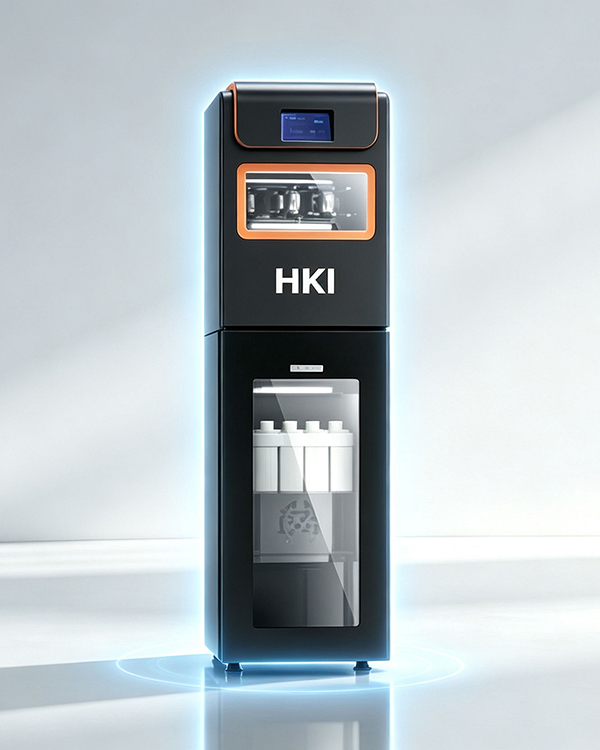

Automatic water sampler
Core functions
Split bottles1–25 bottle split TrackingFlow-tracking sampling ExceedanceAuto retain on exceedance MixContinuous mixed sample RinseAuto-rinse before sampling
Key Highlights

Continuous sampling, orderly retention

Three questions matter: flexible retention, flow tracking, and power-loss behavior. 1–25 bottles, several trigger and retention modes, flow tracking with a meter, auto-resume after outage, and a rinse before each sample.

1–25 bottle split retention

Can 1–25 bottle split retention, bottle count is free to set.

Six sampling triggers

Timed, time-proportional, Flow-proportional, flow-tracking, external, and serial triggers.

Multi-mode retention

Exceedance and sync retention, direct retention, and serial retention.

Flow-tracking sampling

Linked to a flow meter, Pace sampling speed to velocity, so the sample is more representative.

Resume after power loss

After a mid-run power loss, Restore the previous run state, parameters are kept.

Auto-rinse before sampling

Before each sampleAuto-rinse lines and mix tank, keeping samples independent and representative.

Specifications

MicroCONTROL 1610 · specifications

Interval, bottle count, volume, and interfaces below for bid tables; sampling and retention modes follow the site.

Sample interval1–999 min settable
Bottle count25 bottles (1–25 settable)
Per-bottle volume10ml ~ 1000ml
Volume error+7% (at 200 ml retention)
Horizontal sample distance≥ 60 m
Sample hold temperature4 ± 2 ℃
Insulation resistance> 20 MΩ
Analog interface4mA~20mA / 0.5V~2.5V
Data interfaceRS-232 · Modbus RTU
Supply voltageAC220V±10% · 50Hz±1Hz
Operating temperature0℃ ~ 50℃
Weight60kg
Sampling & Retention

Sampling and retention modes that follow the site

Six sampling triggers and four retention modes, linkable to online monitors and flow meters. Filter by type to find the mode you need.

TimedSampling

Timed sampling

Timed Sampling
Sample on a set schedule
Time prop.Sampling

Time proportional

Time-Proportional
Time-proportional sampling
Flow prop.Sampling

Flow proportional

Flow-Proportional
Flow-proportional sampling
TrackingSampling

Flow tracking

Flow-Tracking
Velocity-adaptive sampling
ExternalSampling

External sampling

External Trigger
External-signal sampling
SerialSampling

Serial control

Serial Control
RS-232 command sampling
ExceedanceRetention

Exceedance retention

Exceedance
Retain automatically on exceedance
SyncRetention

Sync retention

Synchronous
Sync retention with an online monitor
DirectRetention

Direct retention

Direct
Direct / manual instant retention
Serial ret.Retention

Serial retention

Serial Retain
RS-232 command retention
Options & Add-ons

Optional extras, commissioned as a set

From mixed holding and sample pump to refrigerated storage and cloud — pick options for the station and sample steadily.

Mixed sample

Mix-and-hold tank

Mixing Vessel

Continuous mixed-sample holding for a representative sample.

Sampling

Peristaltic sample pump

Peristaltic Pump

Steady draw; pump tubing is wear-resistant and easy to change.

Chilled

Refrigerated storage

Refrigeration

Hold retained bottles at 4±2 °C.

Linked

Flow-meter interface

Flow Interface

Analog link to a flow meter for flow tracking.

Data unit

4G / DTU data unit

4G Gateway

RS-232 to 4G, sampling records to the cloud.

Platform

Data cloud

Cloud Platform

Online sampling records and retention logs.

Power

UPS power-loss protection

UPS Backup

Hold-up power keeps run state and parameters.

Tubing

Sampling tubing kit

Tubing Kit

Inlet and rinse tubing as a kit.

Applications

Sample and retain across every section

From plant outfalls to surface-water sections, from enforcement retention to station pairing — continuous sampling and orderly retention keep samples representative.

Wastewater treatment plantWWTP
Industrial outfallIndustrial Outlet
Enforcement retentionEnforcement
Surface-water sectionSurface Section
Drinking-water sourceWater Source
River outfallRiver Outfall
Station pairingStation Support
Flow-proportional samplingFlow-Proportional
Emergency samplingEmergency
