Key Features

Imported Core Components, Fully Automatic Toxicity Detection

From metering units to light sources, from carrier flow methods to communication protocols — every detail is designed for long-term unattended operation: high sensitivity, high stability, and direct readout of acute comprehensive water toxicity.

Imported Core Components

Main components use imported brands, ensuring instrument precision, stability, and long-term reliability from the source.

Infrared Metering Unit

Infrared metering delivers precise sample injection with small metering error, providing a stable and reliable baseline for toxicity conversion.

Positive / Negative Pressure Carrier Flow

Positive / negative pressure carrier flow technology — peristaltic pump tubing never contacts liquid, avoiding contamination and wear, stable and durable.

Fully Automatic Toxicity Detection

Referencing ISO and GB/T standard methods, full-process automatic detection — sampling, reaction, and cleaning all done unattended with one touch.

Dedicated LED Light Source

Dedicated LED light source paired with photoelectric detection delivers high signal-to-noise ratio, sensitively and accurately capturing even faint luminescence changes.

RS232 / RS485 · MODBUS

Standard MODBUS protocol, remote reading of operating status and data, local and cloud synchronization for centralized management.

Detection Principle

Luminescent Bacteria Method, Read Toxicity in Four Steps

Luminescent bacteria emit stable light at constant temperature. When exposed to toxic substances, their metabolism is inhibited and luminescence decreases. The instrument compares sample and reference luminescence values, calculates the inhibition rate, and directly reflects the acute comprehensive toxicity of the water body.

STEP 01

Constant Temperature Incubation

Luminescent bacteria metabolize normally in a 15 °C constant temperature environment, producing a stable and reproducible bioluminescence baseline.

STEP 02

Quantitative Sampling

Positive / negative pressure carrier flow precisely mixes water sample and bacterial solution; peristaltic pump tubing does not contact liquid, ensuring stability and durability.

STEP 03

Photoelectric Detection

Dedicated LED light source paired with infrared metering unit collects luminescence intensity, high signal-to-noise ratio and sensitive readings.

STEP 04

Toxicity Conversion

Comparing sample and reference luminescence values yields the inhibition rate — the higher the value, the stronger the acute comprehensive water toxicity.

M200-DX01 · Biological Toxicity Analyzer ONLINE

Inhibition Rate %12.4

Sample Luminescence RLU8642

Reference Luminescence RLU9873

Reaction Temp ℃15.0

Incubation Temp ℃15.0

SNR dB62.4

Luminescent Bacteria Method · 7″ TFT · RS232 / RS485 · MODBUS

Live Monitoring

Direct Comprehensive Toxicity Reading on Screen,
Instant Alarm on Exceedance

7″ TFT true-color touchscreen displays inhibition rate and luminescence values in real time locally; automatic alarm and relay linkage when threshold is exceeded. The same data is uploaded to the platform via RS232 / RS485, standard MODBUS protocol, with local and cloud synchronization.

Local7″ TFT true-color touchscreen · real-time inhibition rate readings
AlarmLiquid shortage / self-test / fault / exceedance · one relay output
CloudRS232 / RS485 · standard MODBUS protocol
Storage~20,000 records · power-fail safe · USB export to EXCEL

Specifications

M200-DX01 · Technical Specifications

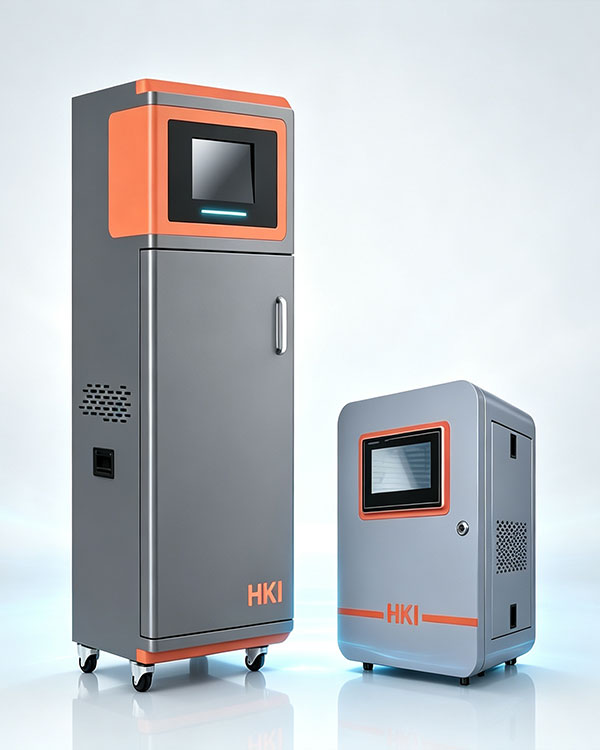

Floor-standing (3rd gen) and compact (4th gen) share the same measurement and electrical standards — select the model, specifications remain unchanged. The table below can be directly incorporated into comparison sheets.

Analysis Range0 ~ 100%

Resolution1%

ErrorStandard solution < 10% · Water sample < 10%

Repeatability10%

Range Drift±5% F.S.

Pure Water Light Loss±3%

Sample Temperature5 ~ 35 ℃

Measurement Cycle1 ~ 24 hours · set in hourly increments

Cleaning MethodAutomatic / Manual

Analog Output1 channel 4–20mA

AlarmsLiquid shortage · Self-test · Fault · Exceedance alarm (1 relay output)

CommunicationRS232 / RS485 interface · standard MODBUS protocol

Data Storage~20,000 records · auto-save on power failure · USB export to EXCEL

Display Unit7″ TFT true-color touchscreen · 800 × 480

Operating Environment5 ~ 25 ℃ · Humidity < 90% (non-condensing)

Dimensions512×427×1480 / 330×285×510 mm (3rd / 4th gen · L×W×H)

Weight60 KG (with reagent cabinet)

Power150 W

Power SupplyAC 220V ±10% · 50Hz ±1%

Applications

One Analyzer, Guarding the Comprehensive Toxicity Line

Comprehensive toxicity is the "master switch" indicator of water safety — from water sources to discharge outlets, from routine monitoring to emergency response, the luminescent bacteria method provides early warning at the first moment.

Drinking Water SourceWater Source

Waterworks Inlet & OutletWaterworks

Surface Water · Rivers & LakesSurface Water

Industrial Wastewater OutletIndustrial Outlet

Wastewater Treatment PlantWWTP

Pollution Emergency ResponseEmergency Response

Anti-Poisoning SecurityAnti-Poisoning

Environmental Warning NetworkWarning Network

Get In Touch

Equip Your Water Body
With a Toxicity Early Warning Analyzer

Tell us your water body type, installation environment, and early warning requirements. We will provide model recommendations (3rd gen floor-standing / 4th gen compact) and configuration suggestions — parameters can be increased, decreased, or adjusted according to actual needs.
